Name: Groove Gauges
Brand: Hammco
Availability: OutOfStock

Groove Gauges

£0.00

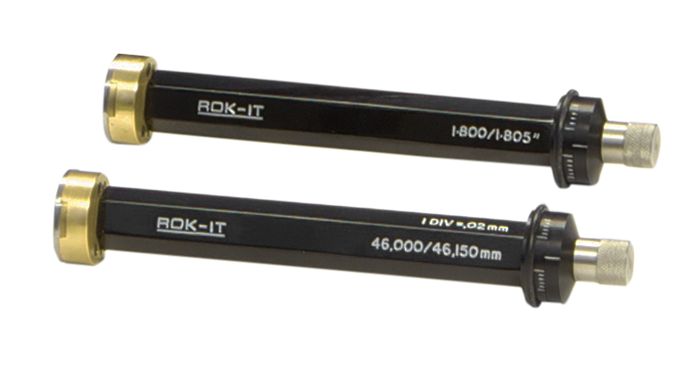

Click to Zoom

Groove Gauges

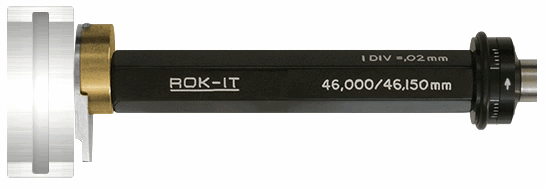

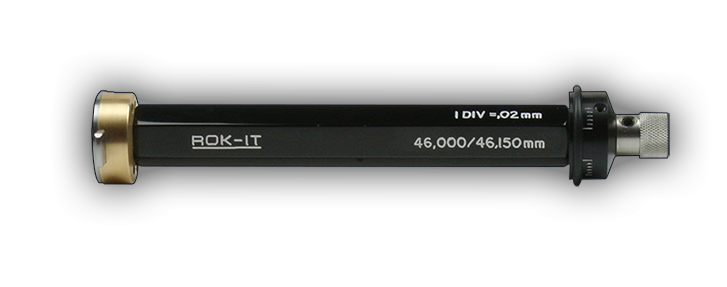

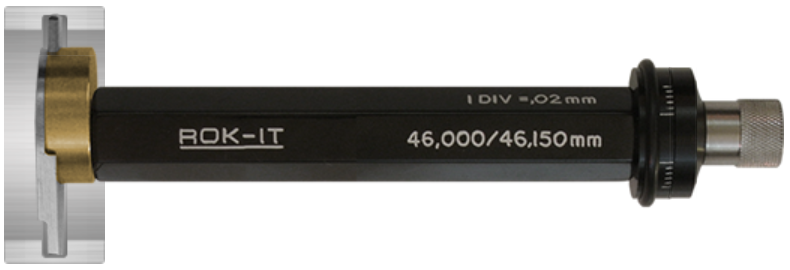

A precision measuring instrument designed specifically for checking the diameter of internal grooves — a notoriously difficult measurement in engineering. The gauge uses the same spherical anvil technology as the ROK-IT Bore Gauge range, providing a quick, positive readout with a dial resolution of 1 division = 0.02mm. The spherical anvils eliminate the need to carefully align the gauge with the workpiece axis, effectively de-skilling what is traditionally a highly operator-dependent measurement. ROK-IT Groove Gauges can be manufactured to a variety of designs depending on the configuration of the workpiece. Custom designs are available — consult Hammond's technical department.

Spherical anvils provide a quick, positive readout — no ambiguity in the measurement
No alignment skill required — the gauge does not need to be precisely aligned with the bore axis, unlike conventional groove measurement methods
De-skills the operation — any operator can take accurate, repeatable groove diameter readings
Dial indicator with 0.02mm divisions for fine resolution
Eliminates the common problems of measuring internal grooves: rocking, tilting, and false readings from misalignment
Custom designs available to suit different groove profiles, depths, and workpiece configurations
Built on proven ROK-IT spherical technology — same friction-free contact principle as the bore gauge range
Reduces inspection time significantly compared to alternative groove measurement methods (CMM, bore micrometers with extended anvils, or transfer gauges)
Ideal for production-floor use — robust construction, fast to use, no complex setup

We’re currently working on enabling direct online ordering for your convenience. Soon, you’ll be able to place orders directly on our website.

In the meantime, please use the enquiry form or contact us via email or phone to place your order. We appreciate your patience.

Email: info@hammco.com
Tel: +44 (0)1442 212211

In engineering, the difficulty of measuring the diameter of internal grooves is well known. The ROK-IT Groove Gauge's SPHERICAL anvils make a quick, positive readout a certainty. It's not even necessary to take particular care aligning the Groove Gauge with the axis of the workpiece - effectively de-skilling the operation.

ROK-IT Groove Gauges can be manufactured to a variety of designs depending on the configuration of the workpiece. Please consult with our technical department.
