Name: Regrind Fixture
Brand: Hammco
Availability: OutOfStock

Regrind Fixture

£0.00

Regrind Fixture

Enables in-house regrinding — no need to return drills to the manufacturer for resharpening
Uses a standard tool and cutter grinder already found in most tool rooms
Precise angular settings reproduce the original factory geometry consistently
Two clamping method options for flexibility with different grinder setups
Extends Ventec drill life significantly — each drill can be reground multiple times
Reduces cost per hole drilled over the tool's lifetime
Clearly defined angle tables eliminate guesswork and ensure repeatable results
Compact fixture — easy to store and set up when needed

We’re currently working on enabling direct online ordering for your convenience. Soon, you’ll be able to place orders directly on our website.

In the meantime, please use the enquiry form or contact us via email or phone to place your order. We appreciate your patience.

Email: info@hammco.com
Tel: +44 (0)1442 212211

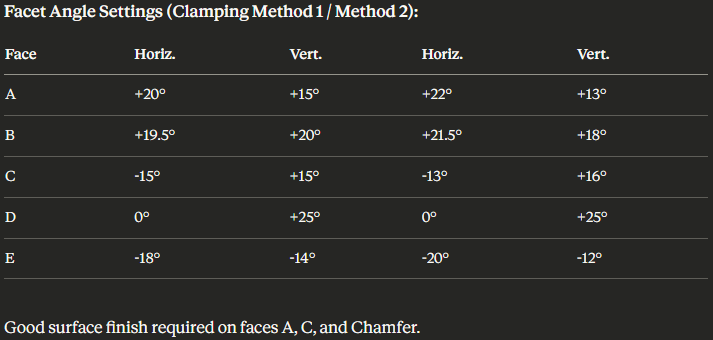

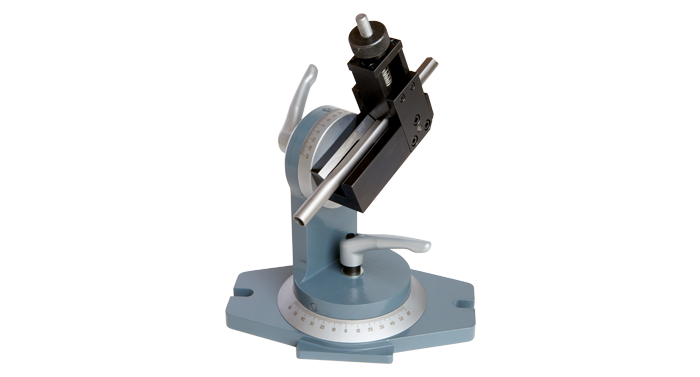

A precision fixture designed specifically for resharpening Ventec drill tips on a standard tool and cutter grinder. The fixture holds the Ventec drill at the correct compound angles required to reproduce the original tip geometry — all five facets (A through E), the primary relief, and the chamfer. Two clamping methods are supported, with specific horizontal and vertical angle settings for each facet.
